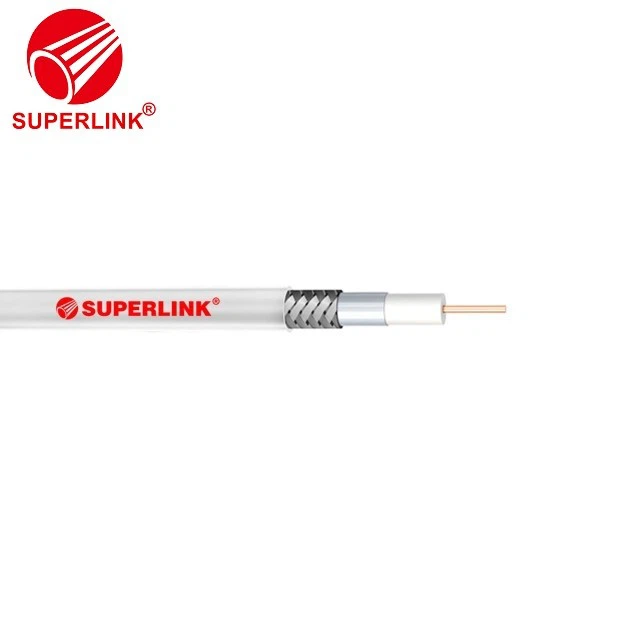

KX 6 Hoge kwaliteit CCTV coaxiale constructie CATV communicatiekabel
Specificaties:
Middengeleider Dia.: 1*18AWG 1.02+/-0.01 mm BC/CCS/TC
Isolatie Dia.: 0,18", 4,57+/-0,10 mm FPE
Schildtype: AL Folie+60% TC/BC/AL vlecht
Jas Dia.: 0.27" ,6.86+/-0,15 mm PVC
Capaciteit: 50+/-3 PF/m
Impedantie: 75+/-3 Ohm
Voortplantingssnelheid: 82%
Sparker-test: 2500 V
Retourverlies: ≥25 dB
Isolatieweerstand (20 C): MΩ• km ≥5000
Diëlektrische sterkte (geleider naar schild): ≥1.6 KV
1) ondersteunt high-definition tv- en verbeterde-definition tv-signalen (420 p)
2)Vergulde verbindingen voor nauwkeurige overdracht van signalen
3) Split-tip middenpen voor een strakke verbinding en verbeterde contactdruk
4) Precisie 75-ohm impedantie-ontwerp;
5) Met stikstofgas geïnjecteerde diëlektrische isolatie;
6) High-end digitale coaxiale kabel met parelwitte PVC-mantel
7) ROHS-goedkeuring.
Elektrisch | Geleider DCR: 6,40 / 1000'|20,99 Ω/KM |
Afscherming DCR: 2,90 Ω / 1000'|9,51 Ω/KM | |
Capaciteit: 16,0 pF/FT|52,48 pF/M | |
Impedantie: 75 ± 3 | |
Voortplantingssnelheid: 84% | |
Spanningswaarde: 300 V | |
Isolatie | Schuim Propyleen |
Pakketjes | Spoel: 1000'|305 M. Haspel in kartonnen doos |
Toepassingen | Seriële digitale video (SMPTE) |
CATV en DBS gemoduleerde video | |
Basisband videosignalen | |
Ongebalanceerde digitale audioformaten | |
Schild | 100% aluminium/poly/aluminium tape |
95% gevlochten schild | |
Jasje | PVC. Kleuren: Zwart / Wit / aangepast |
